Three-edged structure with three advertising surfaces
Three-edged structure with three advertising surfaces 4 m² (1.4 × 2.8 m), bright interior LED lighting and protective tempered glass. Well combined with urban architecture. an be equipped with sensorless scrolling systems – Smart Scrolling System (SSS) series.
Three profile design-models are available. From 3 to 15 advertising posters can be placed in Three-sided pylon, depending on the modification.
Side A
Side B
Side C
DiMedia Three-sided Pylon is reliable and easy to maintain: it combines the wishes of our customers and modern engineering solutions.
Unique development of four profiles with protection against dust and moisture according to IP54 standard. Hardened aluminum alloy 6063 (AD31) with high corrosion resistance.
The stable steel frame provides high stiffness. It meets high wind loads and maintains the exact position of the scrolling system shafts.
The frame is collapsible and consists of separate elements that allows to reduce expenses at purchase of the self-assembly kit.
We pay special attention to safe operation in various weather conditions. 260 newton gas springs prevent the doors from closing while meeting the wind gusts.
The aluminum frame profile side and the rubber seal protect the glass edge from damage.
It consists of 120 waterproof LED modules located on the end walls of the construction.
The angle of light scattering of 140 degrees provides equal lighting of the poster.
- Connectors connect the wires of the LED modules quickly and reliably
- Reliable and waterproof power units, with sufficient power reserve
- Bright LED backlighting with modules SMD3030 and IP67 moisture protection standard
An LED canvas that is installed behind the poster instead of the usual LED backlighting. Smart backlighting creates an animated show with different lighting effects from conventional posters, attracting more attention.
- MP4, GIF file formats
- Software to create and load animation clips
- Download via cable, Wi-Fi or USB flash drive
- Ability to switch on and off by timer
You can install hidden equipment such as Wi-Fi access points and audio systems in Three-sided Pylons. This solution is suitable for public parks, boulevards or embankments.
Three-sided Pylon can be used as city book changers, flyer shelves, remote showcase with creative 3D advertising.
- You can set up a Wi-Fi access point
- You can add a loudspeaker syste
The polymer powder painting method is used. Elements can be painted in different colors according to the customer’s request.

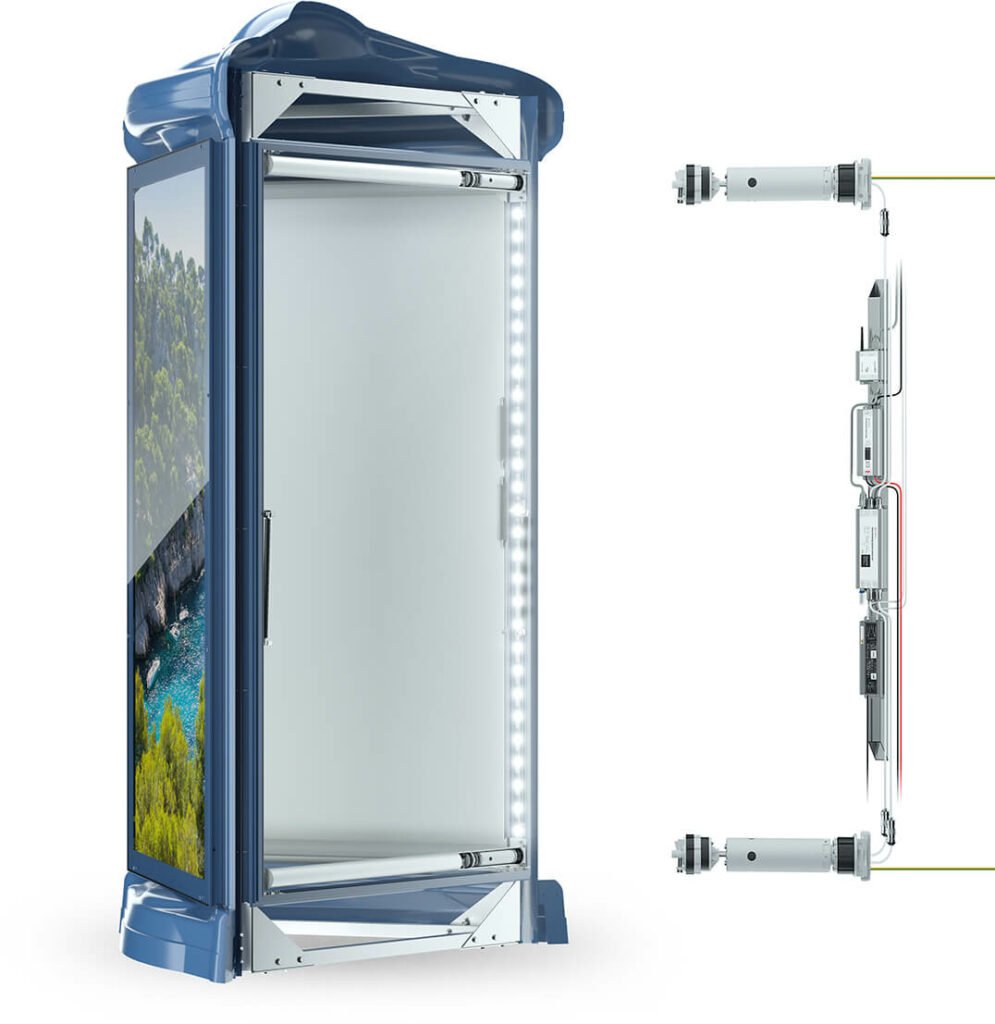

Three-sided Pylons are equipped with the Smart Scrolling System (SSS) — model 76, showing up to six posters on one advertising surface. Fine tuning of rewind, poster display time and other work parameters are possible. The system is equipped with a stop function when the poster breaks.
- High reliability of the system and other components. Warranty up to 2 years.
- No sensors or foil labels on posters
- Configure and manage your system from your smartphone via Bluetooth
Industrial gel batteries are used. The system consists of the battery charger, rechargeable batteries and the charging controller.
